Studio teleprompters

We have a wide range of studio teleprompters to cover the needs of different professionals.

ICONO STUDIO
15-inch studio teleprompter
ICONO STUDIO

17-inch studio teleprompter

ICONO STUDIO

19-inch studio teleprompter

ICONO STUDIO

22-inch studio teleprompter

In addition…

to the standard options, we have three complementary lines.

le icono

LELight teleprompters series.

M icono

M — Teleprompters series with mirror function included in the monitor.

LEM icono

LEMLight teleprompters series with mirror function included in the monitor.

Studio Teleprompter

15-inch

Teleprompter estudio 15"

Teleprompter system 15 inches in size; designed for TV studio cameras.

With tilting angle hood.
Ready for reading up to 5.5 meters away approximately.

Versions →

Standard

Standard, with mirror: Mirror function (specular image) included by hardware and HD/SDI input included.

High Brightness, with mirror: Not available (Please, ask us)

  • Connections: VGA, HDMI and CVBS PAL inputs | The mirror version includes an additional HD/SDI input.
  • Brightness 450 nits.
  • Aspect ratio: 4:3 / 16:9 / 16:10 / 2.35:1 / 2:1 / 1: 1.
  • Native resolution: 1024 × 768 px.
  • Image inversion through software is possible | Specular image included in the hardware in the mirror version.
  • Electrical voltage: 12V DC, adapter AC 100-240V, 50-60Hz.
  • Camera support: Support plate for professional cameras.
  • 100% opacity filter-cloth.
  • Ultra-clear polarized glass, 70/30 beam splitter and high precision mirror image.
  • Measurements of the glass: 369 × 369 mm.
  • Glass thickness: 3 mm.
  • Autobalance system: Monitor, hood and camera have horizontal movement with fixing.
  • Head: with inclinable angle.
  • Structure and monitor material: Aluminium.
  • System weight: 7 kg.
  • Warranty: 2 years.
  • Metallic structure.
  • Hood with glass and support.
  • 15″ monitor with support.
  • Camera support.
  • Filter cloth.

OPTIONAL:

  • Software.
  • Remote controls.
  • Transport suitcase.
  • Tally.
  • Talent monitor.
  • Synchronizable clock.
  • Anti-reflective.

You can then
download the datasheet in PDF format:

Download PDF

Option 1: STANDARD
Option 2: STANDARD, WITH MIRROR

Recommended retail price.
VAT not included.

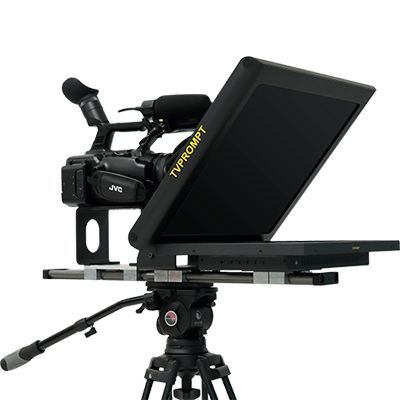

Studio Teleprompter

17-inch

estudio-17-pulgadas-fafbfc

Teleprompter system 17 inches in size; designed for TV studio cameras.

With tilting angle hood.
Ready for reading up to 6.7 meters away approximately.

Versions →

Standard

Standard, with mirror: Mirror function (specular image) included by hardware and HD/SDI input included.

High Brightness, with mirror: Mirror function (specular image) included by hardware and HD/SDI input included. In addition, brightness of 1,500 nits (suitable for outdoor use).

  • Connections: VGA, HDMI, CVBS PAL in-out loop | The mirror versions include an additional HD/SDI in-out loop input.
  • Brightness: 450 nits | A 1,500 nits high brightness version is also available.
  • Aspect ratio: 4:3 / 5:4 / 16:9 / 16:10 / 2.35:1 / 2:1 / 1:1.
  • Native resolution: 1280 × 1024 px.
  • Allows image inversion through software | Specular image included in the hardware in mirror versions.
  • Electrical voltage: 12V DC, adapter AC 100-240V, 50-60Hz.
  • Camera support: Support plate for professional cameras.
  • 100% opacity filter-cloth.
  • Ultra-clear polarized glass, 70/30 beam splitter and high precision mirror image.
  • Measurements of the glass: 369 × 369 mm.
  • Glass thickness: 3 mm.
  • Autobalance system: Monitor, hood and camera have horizontal movement with fixing.
  • Head: with inclinable angle.
  • Structure and monitor material: Aluminium.
  • System weight: 7.4 kg.
  • Warranty: 2 years.
  • Metallic structure.
  • Hood with glass and support.
  • 17″ monitor with support.
  • Camera support.
  • Filter cloth.

OPTIONAL:

  • Software.
  • Remote controls.
  • Transport suitcase.
  • Tally.
  • Talent monitor.
  • Synchronizable clock.
  • Anti-reflective.



You can then
download the datasheet in PDF format:

Download PDF

Option 1: STANDARD
Option 2: STANDARD, WITH MIRROR

Option 3: HIGH BRIGHTNESS, WITH MIRROR

Recommended retail price.
VAT not included.

Studio Teleprompter

19-inch

estudio 19 pulgadas

Teleprompter system 19 inches in size; designed for TV studio cameras.

With tilting angle hood. Ready for reading up to 8.6 meters away approximately.

Versions →

Standard

High Brightness, with mirror: Mirror function (specular image) included by hardware and HD/SDI input included and high brightness of 1,000 nits (1,500 nits optional).

  • Connections: VGA, HDMI, CVBS PAL inputs | The high brightness version includes an additional HD/SDI input.
  • Brightness: 450 nits | A high brightness version of 1,000 nits and a 1,500 nits version are also available.
  • Aspect ratio: 4:3 / 5:4 / 16:9 / 16:10 / 2.35:1 / 2:1 / 1:1.
  • Resolution: 1280 × 1024 px (up to 1920 × 1080 px).
  • Allows image inversion via software | Specular image included in hardware on high brightness-mirror versions.
  • Electrical voltage: 12V DC, adapter AC 100-240V, 50-60Hz.
  • Camera support: Support plate for professional cameras.
  • 100% opacity filter-cloth.
  • Ultra-clear polarized glass, 70/30 beam splitter and high precision mirror image.
  • Measurements of the glass: 370 × 420 mm.
  • Glass thickness: 3 mm.
  • Autobalance system: Monitor, hood and camera have horizontal movement with fixing.
  • Head: with inclinable angle.
  • Structure and monitor material: Aluminium.
  • System weight: 11 kg.
  • Warranty: 2 years.
  • Metallic structure.
  • Hood with glass and support.
  • 19″ monitor with support.
  • Camera support.
  • Filter cloth.

OPTIONAL:

  • Software.
  • Remote controls.
  • Transport suitcase.
  • Tally.
  • Talent monitor.
  • Synchronizable clock.
  • Anti-reflective.

You can then
download the datasheet in PDF format:

Download PDF

Option 1: STANDARD

Option 2: HIGH BRIGHTNESS 1,000 nits

Recommended retail price.
VAT not included.

Studio Teleprompter

22-inch

tvpront-estudio-22-fafbfc

Teleprompter system 22 inches in size; designed for TV studio cameras.

With tilting angle hood. Ready for reading up to 12 meters away approximately.

Versions →

Standard

High Brightness, with mirror: Mirror function (specular image) included by hardware and HD/SDI input included and high brightness of 1,000 nits (1,500 nits optional).

With IP NDI connection: In addition to the hardware-included mirror function and an additional HD/SDI input, it also includes an NDI IP/RJ45 connection.

  • Connections: VGA, HDMI, CVBS PAL inputs | The high brightness version includes an additional HD/SDI input; an additional version with NDI IP/RJ45 connection is also available.
  • Brightness: 450 nits | A high brightness version of 1,000 nits and a 1,500 nits version are also available.
  • Aspect ratio: 4:3 / 16:9 / 16:10 / 2.35:1 / 2:1 / 1:1.
  • Resolution: up to 1920 × 1080 ppp.
  • Allows image inversion via software | Specular image included in hardware on high brightness-mirror versions.
  • Electrical voltage: 12V DC, adapter AC 100-240V, 50-60Hz.
  • Camera support: Support plate for professional cameras.
  • 100% opacity filter-cloth.
  • Ultra-clear polarized glass, 70/30 beam splitter and high precision mirror image.
  • Measurements of the glass: 484 × 413 mm.
  • Glass thickness: 3 mm.
  • Autobalance system: Monitor, hood and camera have horizontal movement with fixing.
  • Head: with inclinable angle.
  • Structure and monitor material: Aluminium.
  • System weight: 12 kg.
  • Warranty: 2 years.
  • Metallic structure.
  • Hood with glass and support.
  • 22″ monitor with support.
  • Camera support.
  • Filter cloth.

OPTIONAL:

  • Software.
  • Remote controls.
  • Transport suitcase.
  • Tally.
  • Talent monitor.
  • Synchronizable clock.
  • Anti-reflective.

You can then
download the datasheet in PDF format:

Download PDF

Option 1: STANDARD

Option 2: HIGH BRIGHTNESS 1,000 nits

Option 3: WITH IP NDI CONNECTION

Recommended retail price.
VAT not included.
